Nicolas Bonafon around 1840

The fully restored Nicolas Bonafon guitar.
It has all the details of a mid 19th century guitar.
In my opinion most parts aren't original anymore .
It was quite common to modernize older instruments.
E.g. the hightened fingerboard and the head.
"Die Geigen- und Lautenmacher vom Mittelalter
bis zur Gegenwart" is a very useful Dictionnary.
You can download it but it is not a very easy
task. It shows the following text:
Bonafon, Nicolas. — Paris. 18. Jahrhundert Eine Viola,
die dem Aussehen nach dem Anfange des 18.
oder Ende des 17. Jahrhunderts angehört haben dürfte,
trug den Zettel : Abb. 49.

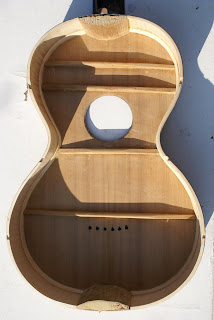

Here's the restored Bonafon guitar with it's unfinished soundboard.
I leave it this way because I'm looking for someone who has a good solution
in treating the marks that has been left by wood insects.
The guitar has been gamma radiused so there aren't any living
insects left, hopefully! Regarding the age of this guitar: suspects are
that the fingerboard mounted up to the soundhole is not original.
The Dictionnary "Vanne" mentions Bonafon as a Paris based luthier.
A pochette (travel violin) is known to be made with the following label:
Nicolas Bonafon (sic) Luthier à Paris 1799
V. Etiquette n° 62."

For the back and sides I used the wood from
another older guitar that was of little value.
The orange colour I obtained with a staining process.

A close look at the bridge where I restored the
outer parts and even made new dots with ivory
inlays to have it close to it's original condition.
Even the soundboard is not free from wood insect traces.

The back of the head with the EON Tuners
with ebony tuning knobs. The design of this head
resembles that of some René Lacote guitars as
well as the later produced Thibouville Lamy
instruments (around 1860)
It is clearly visible that the head is not exactly
centered with the neck. Suspects are that the head with
these later tuners is an addition as well.

A nice picture of the sides that shows the uneven depth
of the soundbox along this instrument.




Here's the Bonafon guitar in its authentic situation.
The bridge ends have disappeared.
The fingerboard is in bad shape.
The sides and back are too far
gone as a result of wood insects
Though this guitar was not that expensive I decided
to bring it back to life and in a playable condition.
It was worth all that trouble!
A nice warm and clear tone with remarkable
sustain comes from this instrument.
Tonecolour and balance between the different strings
proves to be absolutely astonishing.

On this picture you can see I removed the fingerboard
and back allready. I presumed the sides could be used
again but that would have been a lost case.

The back of this guitar also shows the holes
made by wood insects. The back was also damaged
too far especially on the ends.
It was a one piece back as can be seen
on other pictures I've included.

The original label on the new two piece back.
The wood came from an old german guitar that was
furthermore of little value.



The well known EON mechanics were fitted on
this instrument. Just by selling these ones I
would have all my investments in this guitar back!
Note that the tuners appear to be mounted the wrong way.
In fact, no: This is the way these tuners work the proper way.
Compare this to the same tuners on the Thibouville Lamy
guitar also on this site.


Again the old situation: The sides just broke off with
little effort.


Here are the newly made sides.
I bowed them with the soundboard plantilla as a model.
The original back that looked much better than it really was.
Still beautiful to look at as it has a fine grained and striped
piece of maple. (second picture)

To reassure people who really want to
stay close to the original. The poorly
conditioned inner part!
This guitar would have ended as garbage
and another reason is that there are numerous
guitars of this age still in existance!

The back finished with the new wood parts.
The struts are the original ones

Rod Capper "Celaje" guitar 2000 / Augustin Claudot guitar (1810 - 1820)



In Auckland New Sealand the birth of this guitar
took place. It has been built in 2000 by Rod Capper.
He gave it the name "Celaje"  which means "Painting
of the sunrise" very poetic indeed. It is in now good
condition and has a warm and friendly tone.


The back and sides of this guitar have been executed
with Indian rosewood. Rod Capper is known to use
native woods as the climate in New Zealand allows
it to grow useable hardwoods there. The bridge has
been made out of a native wood called Jarra. Maybe
not visible on this picture the back is showing some
deep carvings on this furthermore very nice looking
instrument. Together with the relaquering of the back
the frets will be dressed and the fingerboard will be
flattened out if needed.


The headstock that likely is provided with Schaller tuners
to my believe. They do their job very well. This guitar will
also be equipped with an ivory topnut as string spacing
in fact is a bit of a personal one and I like  slightly more
"room" between the first string and the outer end in order
to be able to make a proper pull off execution.


The rosette is quite intriguing as it is very refined.
Though the combination with the darker cedar would
ask for another color setting to my opinion it remains
a remarkable one. My taste for Rosettes is personal
of course.


Under his label he placed another smaller label where
one can find his signature. On the bigger label one can
find the year and month of production: May 2000.
The number is 5 so it probably was the fifth guitar
in that year. In an E-mail states Mr. Capper this to
be a concert instrument and it has those qualities.


By clicking on this picture you are able to study the
bottom of the bridge slot which is surprisingly V
shaped. According to Rod this is to increase the
contact area and thus boosting the energy transport
of the strings to the body.


I think it will not be very surprising but to bring a guitar
back in an immediately playable condition and have the
lacquer brought back in a like new condition aks for
some hours investigating. But the guitar is worth all
that additional work. Of course a good set of strings
will be the final move on this instrument that normally
finds itself in the 5000 Euro's price range.




Augustin Claudot




This french early romantic guitar has been built
by Augustin Claudot who was a member of the
well known Claudot Family of violin makers atMirecourt.
Though affected by wood insects this particular
instrument still has a wonderful sound.


This picture clearly shows us the soundboard before restauration.
In fact I was forced to make some radical decisions regarding
reparation. It all worked out very well!



The back of this Augustin Claudot guitar has been
done with maple as are the sides of this instrument.
This whole instrument has been treated with
Gamma rays in order to kill eventually existing
insects. It should last now for the future.


As on his violins Augustin Claudot allways stamped
or branded his instruments. His violins are said to be made
with nice woods and great craftsmanship.


A detailed shot of the bridge that clearly shows
that there are no bones used. The neck angle has to be
perfect in order to be able to play comfortably.
It still does!

Manuel Contreras 1 (1983)




This Manuel Contreras date from 1983, the time Manuel
Contreras I was in charge. Cedar topped guitar and Brasilian
rosewood sides and back. A 65,5 scale is provided and
of course an ebony fingerboard.


These kind of coloured rosette was most used on guitars from
Contreras around these times. However the exact rosette as
this one we haven't been able to find yet.
The soundboard has been provided with a traditional 5 fan bracing.
These 2A class guitars seems to posess a bit more the traditional
Madrid (Jose Ramirez) sound and I can confirm that but only
the real beauty of its'  sound was detactable after I removed the
rather crudely placed scratchplates (even layer on layer on the
higher string side) and the exchange of the badly modelled
bridgebone. Absolutely handbuilt but not by Manuel Contreras
himself. The guitars that have a hand signed label are the
premium concert guitars but often built by Ignacio Rozas.


A beautiful piece of wood has been used for the back and
sides which makes this instrument a beauty.
Narrow grained top with one well repaired crack beneath the bridge.


A non signed label which could point towards a guitar
second to their top model (2A) and most likely made
by one of his workmen. Absolutely handbuilt anyway.


The head that looks the same as on the 1A model.
And of course the Fustero tuners and the inlay in the head
that can be found as well on the 1A model. However the
outer ends on top of the heads are normally a bit sharper
on the later Doble Tapa models but the earlier ones do show
more similarities. The outer heelform isn't the same
as on the double tapa models of the mid eighties.


A nice shot of the Fustero tuners that are hand engraved
as was done by this company from Barcelona on their
higher end models.


A shot of the back that still  is in pristine condition.
The soundboard shows some play wear but nothing
serious. We compared this instrument with the somewhat
later double tapa models and the plantilla (contours)
of the body differs from these models which can mean
two things. As in a small workshop like Manuel Contreras
had the use of only one soundbox model would be most
explainable. What is of relevance is the comparison
between a slightly earlier signed Contreras and this one.



On the sides the use of  Brasilian rosewood becomes
even more obvious. Nicely matched as was common.


The use of this Brasilian rosewood for a non signed guitar
is of course remarkable. There are no markings inside this
instrument so the mystery is still there but anyway:
Playability is great and the sound can concur that of
a signed instrument from the Contreras workshop.
Probably Contreras worked the same way as Jose
Ramirez did: If there were any flaws on the 1A meant
guitars they were labelled 2A or not signed. On this
guitar the "flaw" could be the ebony used for the
fingerboard, in fact third quality because of the small
spots that can be detected at various places. It is of
course not of any influence to the sound of this one.

Juan Estruch Concerto model 2 1972 / Juan Estruch 1920 / 1930


A 1972 Concerto II model of this Barcelona based
luthier. In fact a factory made instrument but with the
quality of a hand built one. In pristine condition as it has
hardly been played. 65 cm scale and a traditional
7 fan bracing with no closing ribs. Individual blocks
are used to glue the top to the sides. The spruce top in
combination with the ebony fingerboard seems to
cause cracks alongside the fingerboard as is the case
with this guitar. Though not that loud, the sound is
very complete and even. Good woodwork inside.


Quality of the woods used is great although indian rosewood.


The Torres head and the strange "bulb" above the top nut.
I used this move on an old Juan Estruch in order to be able
to place  a 64 cm fingerboard instead of a 65 cm finger-
board that in fact was original but gave a wrong octave pitch.
The tuners are of a cheaper quality but they work well.


A quite heavily decorated bridge.


Good (enough) tuners that do their job well.


The pattern of the rosette that been repeated in the bridge
stringblock. The Concerto series are still around but it
remains questionable wether the qualities still are the
same as a lot of machinery took over some proceedings.



Juan Estruch ( around 1925 )




A fairly old Juan Estruch but with the round label the
company used from 1920 until 1954. Adress: Calle Ancha 30
Barcelona (Source: Romanillos). In the mid twenties of the last
century Juan Estruch Sastre imported wood and materials
(from 1919) and guitars (1923-25) from Telesforo Julve
and by seeing the typical bridge inlays this could have
been one of them. Even the carving of the bridge is identical
to the TJ bridges. This is more than a coincidence!


It is obvious the guitar has "lived" and will be brought back
to live though there is a lot left to be done. In fact the Rosette
shows us a nice wooden inlay so no concentric circles only!
The extended fingerboard also has a similar design as
the TJ guitars. This guitar has a three piece soundboard.


The back and sides are making this guitar even more
remarkable as one can conclude the wood to be walnut
but of a higher quality. A cedar neck with a fingerboard
of a strange reddish color but dense enough to do a good
job! The same wood I have found on my Telesforo Julve
from the fifties. Soundboard is spruce, fairly wide grained.
The soundboard is supported by a 5 fan bracing but all
quite close to each other. The inner heel shows a higher
standard than was usual in the Telesforo Julve guitars.


A "Torres"  kind of head form, Estruch later used for the
Concerto series. Wether if the tuners are original I really
do not know. The headstock is nicknamed: "shouldered".
But in fact a bit crudely shaped so I will make some
corrections to it though I know: not original anymore.
The "original" shape has been damaged on the back
so that's the reason I will reshape it.


I decided to proceed the restoration from this guitar as
the sound is surprisingly good and complete. However
the markings at several places on the back of the neck
and the placing of a new fingerboard urged me to
relaquer the neck and head. As the head was not treated
that well I had to remove some damages and decided
to redress the head as a whole to a more Torres-like
approach. Thoroughly cleaning of old tuners in fact
is a must. Here the final result can be seen.


The typical "Valencian"  way of constructing a heel.
The heel is rounded and that would date the guitar
between 1909 and 1945. ( If this is a Telesforo Julve.)
Please note that Marcelo Barbero also used this way
of constructing a heel.


The tuners from which it is questionable if they were
there at the birth of this guitar. So, what to do first:
As the transverse bar under the fingerboard came off
the guitar already had a bad playing action but even
after repairing that it will not solve the whole problem.
The back is partly loose so the invitation lies there:
"Remove me please" then it will be possible to lift the
soundboard a bit with a reglued brace. A neck reset is
easy when the back has been removed but a Spanish
heel is allways a bit of a problem. These tuners have
been spot as well on a 1920 / 1930 Juan Estruch so
it could have been possible that some guitars were
assembled in Barcelona as the other Estruch was a
really high end model of the company.


On this picture the rather strange 5 fan bracing is visible.
Strange in a sense that the 5 bars have been placed quite
close to each other. Another remarkable feature is the
placing of 6 clamps in the lower bout in order to
strengthen the two seams of the 3 piece soundboard.


The brace left most likely got loose and as a result the
fingerboard "moved'  under the string pressure as can be
seen in the sound hole. Obviously the soundboard as
a whole shows a sag at that point as a result.


Maybe not that interesting but for two reasons I've included
this picture. It shows an end block which is quite similar to
those that can be found in the Telesforo Julve guitars and
besides that 6 rather crudely shaped clamps in order to
strengthen the two seams of the 3 piece soundboard. The
same feature I found in my fifties Telesforo Julve that
has a 3 piece soundboard as well. It is even questionable
wether if the builder did this on purpose as there are also
three piece soundboards on some Antonio de Torres guitars.
Exactly the same shaped end block in my fifties TJ guitar.


It would have been logically that with the loosening of
the now visible transverse brace the soundboard cracked
along the fingerboard as a result of string pressure but
after having removed the fingerboard it became obvious
that the so called cracks in fact are seams of the middle
part of the soundboard. There was no other way to make
a proper correction of the "moved" soundboard piece
under the old fingerboard without removing it.
Now the bit deformed whole neck setting  as a result
of string pressure is able to "come back"  to its'
original position. Another problem remains the scale
of the original fingerboard: 650 mm as the distance
between the nut and 12th fret is 325 mm but from
the 12th fret to the bridge bone 320 mm (!) Partly due
to the deformation of the whole neck area but also a
not properly glued bridge distance! I have an ebony
fingerboard already slotted for a 640 mm scale.
I can place that instead of the original and still have
a 2 mm compensation which is normal nowadays.
And remember: In former times there was not taken
care for a compensation as string height was usually
much lower!


I will close the seam on the right properly and make an
insert left as that part will be covered by the new fingerboard.


Securely flattening out this area and comparing
it with the rest of the neck is very important now
as I decided to place the frets before gluing the
fingerboard. The pictured area is too vulnerable
for hammering in frets even with a decent support.


I have a 19 fret fingerboard now which is very suitable for
the more demanding musical pieces. As I explained earlier
the scale is now 640 mm with a compensation from the
12th fret to the bridgebone of 2 mm.


As the earlier fingerboard had a scale of 650 mm I had
to make a solution for the top nut. If you take a closer
look at the first Juan Estruch presented in this blog you
can conclude I used their own method to solve this
problem. Just a small piece of ebony placed above
the top nut so the new situation has a natural look
regarding proportions.


The twelfth fret is a fraction more reachable now but
that can play an important role in some musical pieces.
Next step is to glue the back in place. I think it has to be
shortened by around 2 / 3 mm for a proper neck reset
and that won't be a big problem.



The back has been placed and glued. The top has been
treated with a greyish color remover for bare wood and
that had a significant effect on the color of the top. The
sound after putting the strings on is typical for the Valencia
guitars but compared to my fifties Telesforo Julve it
has more power in the higher notes. The guitar is not
"shining"  (brightness of the higher notes) the way my
Jose Ramirez 1945 does but that can have two causes:
The top still has to be relaquered and the guitar needs
to be "played in"  again!


Not yet the "final"  result as the binding on the back has
to be redone partly: Gluing on an existing back and giving
the instrument a slight neck reset at the same time means
an inevitable unevenness at some spots. But the top is
relaquered now. Most of the time I polish the varnish
after about a year as only then you can get the amount
of brilliance in the lacquer you want because the lacquer
has to be hardened out. I used an Alkyd lacquer that
indeed adds to the brightness of the higher notes and
can be removed quite easily if there is a need to.
